From High to Low: Decoding All Boiler Pressure Problems

Why Boiler Pressure Matters for Your Home's Comfort

Boiler pressure issues are a common heating problem, but most can be diagnosed and fixed with the right knowledge. Understanding why your pressure is too high, low, or fluctuating can save you time, money, and stress.

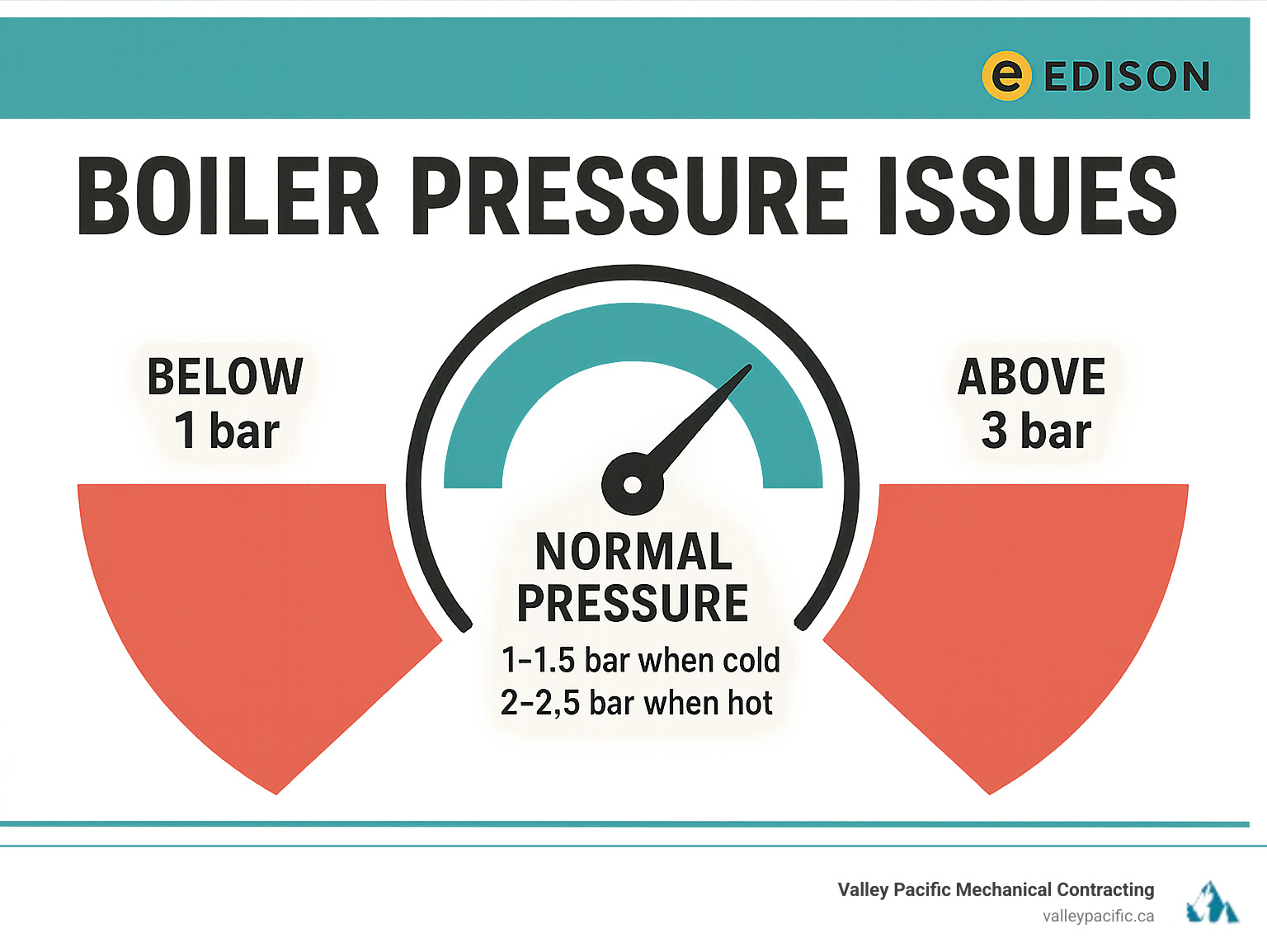

Quick Diagnosis Guide:

• Normal pressure: 1-1.5 bar when cold, 2-2.5 bar when hot
• Low pressure signs: Radiators not heating, boiler cutting out, gurgling noises
• High pressure signs: Water dripping from overflow pipe, boiler lockout, gauge in red zone
• Common causes: Bleeding radiators, system leaks, faulty components, overfilling

Your boiler's pressure is the force pushing hot water through your heating system. Like blood pressure, if it's too high or low, something is wrong.

It's important to distinguish boiler pressure from water pressure. Water pressure affects taps and showers, while boiler pressure only affects your central heating.

If pressure drops below 1 bar, your boiler often won't start. Above 3 bar, safety systems engage. Either way, you're left without heat.

Pressure naturally rises as water heats and expands, so seeing the gauge move is normal. Problems occur when the pressure stays outside the safe range or changes unexpectedly.

Understanding and Checking Your Boiler's Pressure

Boiler pressure is the force that pushes hot water through your pipes and radiators. When the pressure is right, your home stays warm. If not, you'll notice cold spots and strange noises.

Boiler pressure issues are straightforward. Your boiler is a sealed system, a closed loop where the same water circulates continuously.

When cold, your boiler should be between 1 and 1.5 bar. When the heating is on, the water heats and expands, causing the pressure to rise to between 2 and 2.5 bar. This is normal.

An expansion vessel acts like a shock absorber, accommodating the extra volume from heated water and managing these pressure changes.

Problems arise when pressure is consistently outside these ranges. Below 1 bar, the boiler may not start; above 3 bar, safety systems will activate.

How to Check Your Boiler's Pressure

Checking your boiler's pressure is an easy, 30-second task that can prevent future problems.

Locate your pressure gauge, which will be either an analogue dial or a digital display. Analogue gauges often have green (safe) and red (problem) zones.

For the most accurate reading, check the pressure when the system is cold (off for several hours).

Check before winter and after bleeding radiators, as bleeding releases water and can lower the pressure.

Simply read the number on the gauge. The ideal cold pressure is 1 to 1.5 bar.

Signs of Incorrect Boiler Pressure

Your heating system will give you signs when something is wrong. Catching these early can prevent serious problems.

The most obvious sign is radiators not heating properly. Low pressure means hot water can't reach all radiators, especially those far from the boiler.

Strange noises like gurgling can indicate air in the system (from low pressure), while banging or kettling suggests poor water flow.

Modern boilers will automatically shut down (lockout) if pressure is too low (below 0.5 bar) or too high (above 3 bar), often displaying an error code.

Look for leaks. High pressure can cause dripping from the external pressure relief pipe. Low pressure often indicates a leak somewhere in the system, causing damp spots.

If you're dealing with no hot water alongside these pressure symptoms, the two issues are likely connected. For more detailed troubleshooting steps, check out our guide on troubleshooting no hot water from boiler.

Troubleshooting Low Boiler Pressure

Low boiler pressure (below 1 bar) is a common issue, but it's usually simple to fix. In a sealed system, a pressure drop means water has escaped. The boiler needs this pressure to circulate hot water to your radiators.

Bleeding radiators is a common cause of pressure drops. When you release trapped air, a small amount of water escapes. You'll need to top up the pressure afterward.

Water leaks are another culprit. Even a tiny drip can cause a gradual pressure loss. If you're constantly repressurizing your system, a leak is the likely cause.

A faulty pressure relief valve can also cause pressure loss. It's designed to release water only at high pressure, but if it fails, it may drip constantly.

Older systems are more prone to developing small leaks over time as joints and seals wear out.

Fortunately, low pressure rarely requires expensive repairs and can often be fixed by repressurizing the system. For more guidance, see our guide on what to do when boiler pressure drops.

How to Repressurize Your Boiler (The Filling Loop)

Learning to repressurize your boiler is a basic skill that saves time and money. The process uses a "filling loop" to add water from the mains to your heating system.

First, turn off your boiler and let it cool completely for safety and an accurate cold pressure reading.

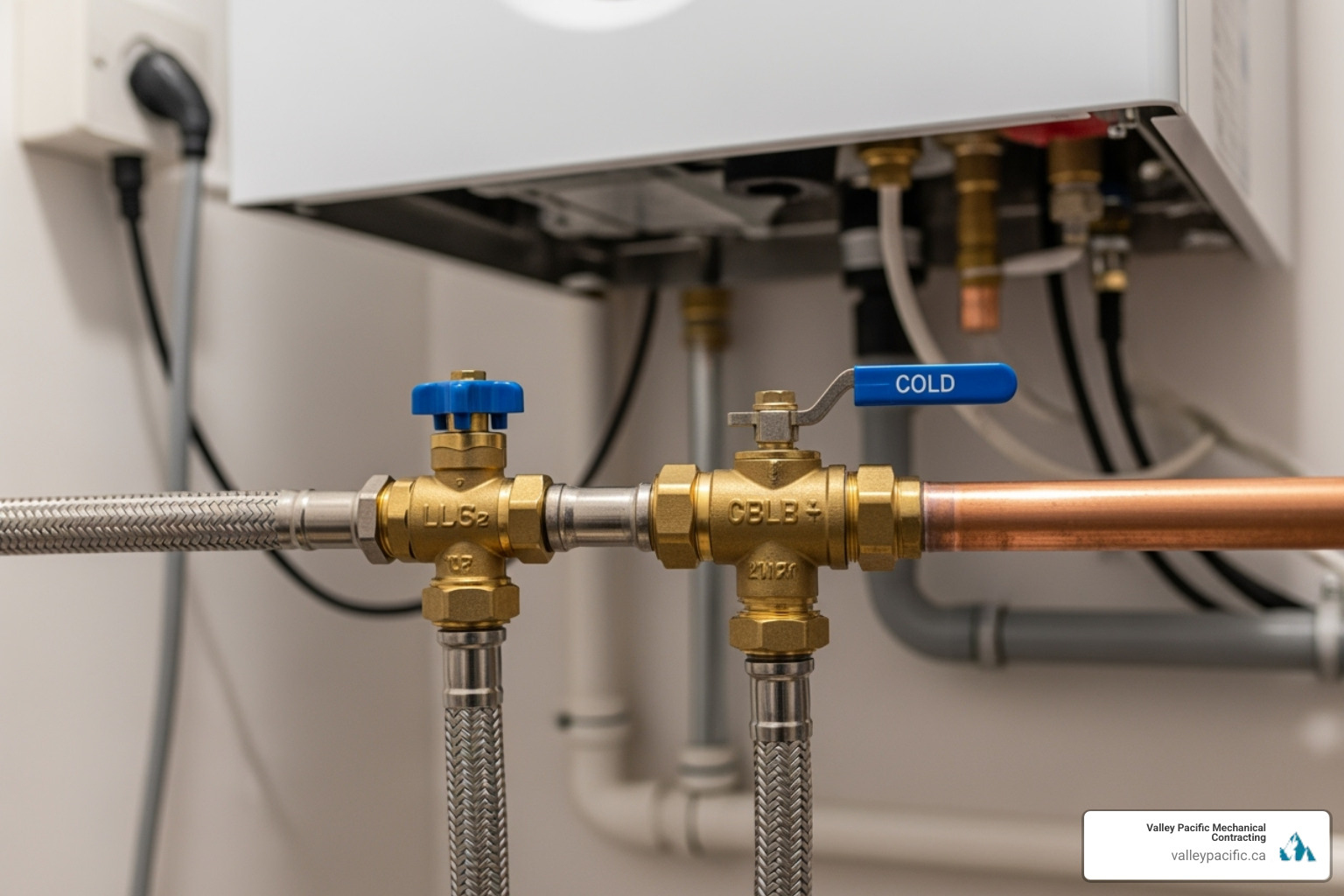

Locate the filling loop under your boiler. It's a flexible hose or permanent pipe with two valves that connects your heating system to the water supply.

If the filling loop is detachable, ensure it's securely attached.

Slowly open both valves. You will hear water entering the system.

Watch the pressure gauge closely. As water enters, the pressure will rise. Aim for 1 to 1.5 bar. Do not let it go higher, or you will cause high-pressure problems.

Once you reach the target pressure, close both valves firmly to prevent overfilling.

If your filling loop is detachable, disconnect and store it.

Switch the boiler back on and press the reset button if needed to clear any error codes.

Consult your boiler manual for specific instructions, as models vary.

Finding Leaks: A Common Cause of Boiler pressure issues

If you're constantly repressurizing, you likely have a leak. Finding it requires some detective work, but leaks leave clues.

Start with a visual inspection of your heating system for damp patches, discolored paint, peeling wallpaper, or puddles, especially near pipes and radiators.

Listen for dripping sounds, which can lead you to hidden leaks inside walls or under floors.

Check radiator valves for dampness. A small leak from the spindle can sometimes be fixed by gently tightening it.

Inspect pipe joints for water stains, rust, or green corrosion, as they are common weak spots.

Check for drips under the boiler and inspect radiators thoroughly, including the bottom edges and back.

While you may find the leak, fixing it properly usually requires a professional. Unless it's a simple tightening of a valve, call an expert to resolve your boiler pressure issues permanently.

Tackling High Boiler Pressure

High boiler pressure (above 2.75 bar or in the red zone) is another common boiler pressure issue. It can cause significant problems for your heating system, putting unnecessary strain on components and triggering safety shutdowns that leave you without heat.

Overfilling the system is a common cause. This can happen if you add too much water when repressurizing or don't close the filling loop valves completely.

A faulty filling loop can also be the cause. If a valve is worn, it may allow water to continuously trickle into the system, slowly increasing the pressure.

Expansion vessel problems are also common. This component absorbs water expansion as it heats. If it fails or loses its air charge, the pressure will spike whenever the heating is on.

Less commonly, blockages from sludge or debris can cause pressure to build up, especially in older, unmaintained systems.

For more detailed information on this topic, Ariston has a helpful guide on Boiler Pressure Too High? Causes and how to fix it.

How to Safely Reduce Boiler Pressure

High pressure is often easier to fix than low pressure, as it simply involves removing excess water from the system.

Bleeding radiators is the safest way to reduce high pressure. Turn off your boiler and let it cool down first.

Using a radiator key and a towel, slowly open the bleed valve on a radiator. Let air escape, followed by some water.

Watch the boiler's pressure gauge as you do this. Once the pressure drops to around 1.5 bar, close the valve. You may need to repeat this on another radiator if the pressure was very high.

If bleeding isn't enough, you can drain the system partially using a drain-off cock. However, if you're not comfortable with this, it's best to call a professional.

The pressure relief valve handles high pressure automatically and should not be operated manually. If it's constantly dripping, your pressure is too high or the valve is faulty.

This video shows you how to do it yourself and provides a helpful visual guide to the bleeding process.

The Role of Key Components in Boiler pressure issues

Understanding key components can help you spot problems early. When one part fails, the whole system is affected.

The expansion vessel is crucial for pressure control. It's a small tank with a diaphragm separating air and water. It absorbs the excess volume of expanding hot water, preventing pressure spikes. A failed expansion vessel causes pressure to be high when the system is hot and low when it's cold.

Your pressure relief valve (PRV) is a safety feature that opens to release water if the pressure exceeds 3 bar. A constantly dripping PRV indicates either high system pressure or a faulty valve.

The heat exchanger transfers heat to the water. A crack can cause internal leaks and pressure drops, while a clog can restrict flow and cause erratic pressure.

Component failures have predictable symptoms. A faulty expansion vessel causes pressure swings with temperature changes. A leaking PRV or heat exchanger causes a steady pressure drop.

If you've ruled out simple causes and the pressure is still erratic, you likely have a faulty component. Boiler error codes can often pinpoint the issue, signaling it's time to call a professional.

Preventative Maintenance and When to Call a Professional

Regular boiler maintenance is key to its longevity and reliability. Neglecting boiler pressure issues or general upkeep can lead to more serious problems.

Annual boiler servicing is the best way to maintain your system. A technician will check key components like the pressure relief valve and expansion vessel, inspect for leaks, and catch problems early.

Between services, perform regular DIY checks. Glance at the pressure gauge every few weeks, especially in winter. Catching issues early can prevent a system breakdown.

Bleed radiators periodically to keep the system efficient, and always check the pressure afterward.

The risks of ignoring incorrect boiler pressure include system strain wearing out parts, higher energy bills, damage to expensive components, and a complete loss of heat and hot water.

For comprehensive maintenance and repair services, including tackling stubborn pressure problems, our team is here to help. Learn more about our services for Boiler Repair Langley BC.

When to Call a Licensed Gas Fitter

While some boiler pressure issues are DIY-friendly, many situations require a professional. Knowing when to call an expert saves time, money, and avoids safety risks.

• Persistent pressure drops: If you're constantly repressurizing the system and can't find an external leak, you likely have an internal leak or faulty component that needs professional diagnosis.
• Rapidly rising pressure: If pressure rises quickly even after bleeding radiators, the expansion vessel or filling loop may be failing. This is not a DIY fix.
• Boiler error codes: Many pressure-related error codes point to complex internal faults that a professional can diagnose quickly.
• Suspected internal leaks: If pressure drops but there's no visible leak, a professional can use specialized equipment to find hidden leaks.
• Uncertainty or discomfort: If you're ever unsure or uncomfortable performing a fix, it's always safest to call for professional help.
• Safety concerns: Any unusual smells, sounds, or visible damage to your boiler requires immediate professional attention.

Our licensed professionals at Valley Pacific Mechanical have over 30 years of experience resolving complex boiler problems. We offer a headache-free experience with 24/7 emergency service. A qualified gas safe engineer (or a certified gas fitter like our team) has the training to keep your system running safely and efficiently.

Frequently Asked Questions about Boiler Pressure

We get many questions about boiler pressure issues. While it can seem mysterious, the basics are quite simple.

Why does my boiler pressure rise when the heating is on?

This is a common question with a simple physics-based answer: water expands when heated. As your heating warms the water in the system, the pressure naturally rises.

A normal pressure increase is from 1-1.5 bar (cold) to about 2-2.5 bar (hot). This indicates your boiler is working correctly.

However, a dramatic pressure increase (e.g., from 1 bar to over 3 bar) signals a problem, usually with the expansion vessel. A faulty vessel cannot accommodate the expanding water, causing a pressure spike.

Is low or high boiler pressure dangerous?

Modern boilers are very safe. They have features like automatic shut-offs and pressure relief valves to prevent dangerous situations.

If pressure is too high, the relief valve releases water. If it's too low, the boiler enters lockout mode and won't start, protecting the system.

While not dangerous in an explosive sense, incorrect pressure is still a problem. It strains the system, increases energy bills, and can lead to expensive component failures if ignored.

How does bleeding radiators affect boiler pressure?

Bleeding a radiator releases trapped air, which helps it heat evenly. However, bleeding also releases a small amount of water from the sealed system. This water loss causes the overall system pressure to drop.

You will almost always need to repressurize your boiler after bleeding radiators to return it to the optimal 1-1.5 bar range. If the pressure is below 1 bar, follow the steps to repressurize it.

Always check your boiler pressure after radiator maintenance to keep your system running smoothly.
