Why HVAC System Design Matters for Your Comfort and Wallet

HVAC system design is the science of creating heating, ventilation, and air conditioning systems for optimal comfort and energy efficiency. Proper design involves:

Key Elements of HVAC System Design:

Load calculations - Determining exactly how much heating and cooling your space needs
System selection - Choosing the right equipment type and size for your building
Ductwork design - Planning air distribution for even temperatures throughout
Integration - Coordinating with electrical, plumbing, and building structure
Controls - Setting up thermostats, zoning, and safety systems
Code compliance - Meeting local building standards and energy requirements

Poor HVAC design costs you money. Oversized systems waste energy and fail to remove humidity, while undersized systems run constantly without reaching comfortable temperatures. Bad ductwork creates hot and cold spots that thermostats can't fix.

Good design pays for itself. A properly designed system can use 20% less energy, last longer, and keep every room comfortable, preventing costly issues like mold and premature equipment failure.

HVAC systems are the cornerstone of building performance—they don't just control temperature, they affect your health, energy bills, and peace of mind for decades.

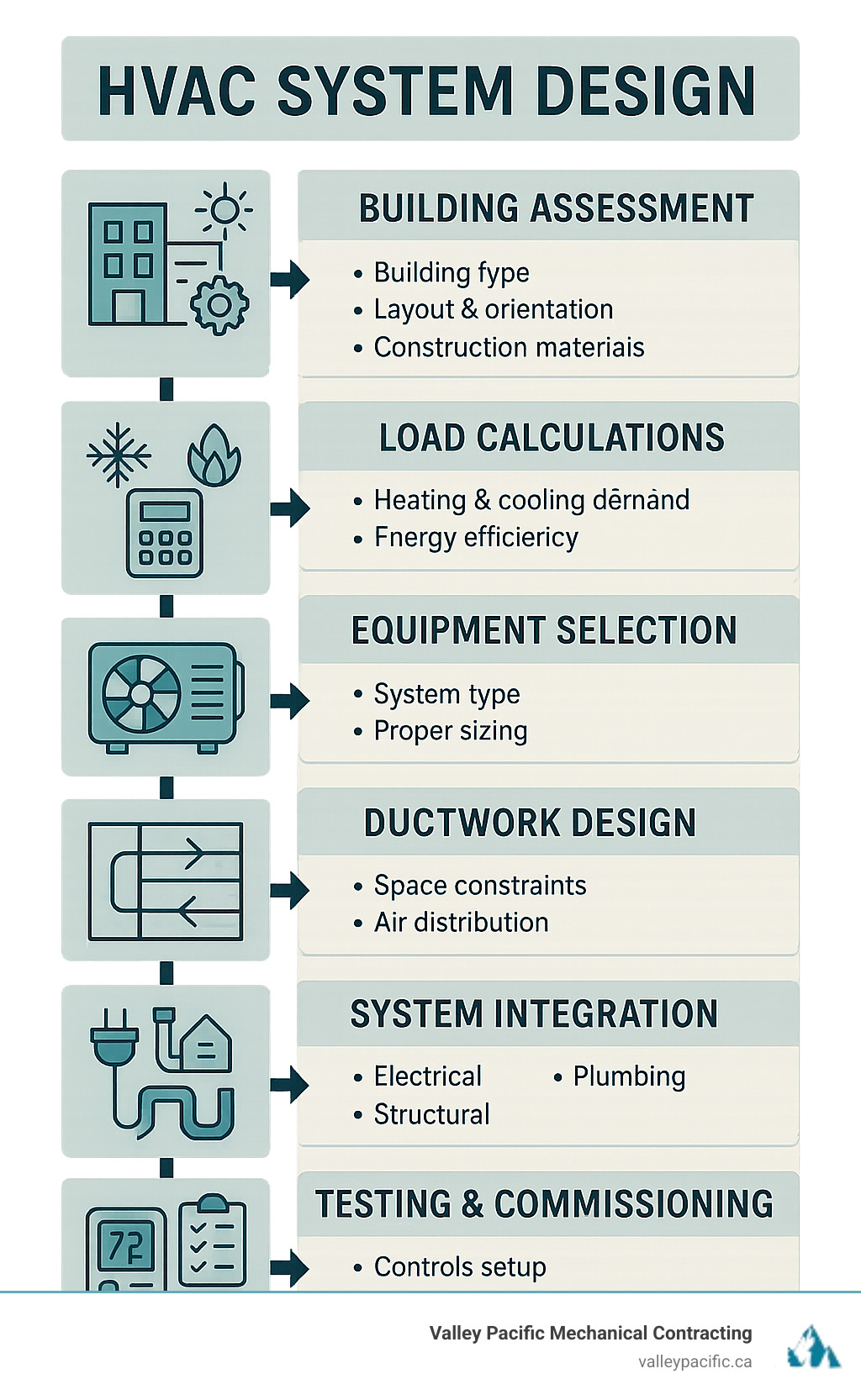

Comprehensive infographic showing the HVAC system design process from initial building assessment and load calculations through equipment selection, ductwork layout, system integration with electrical and plumbing, control installation, testing and commissioning, with arrows connecting each stage and key considerations listed for each step - HVAC system design infographic

The Foundation of Professional HVAC System Design

Your home's building envelope—walls, roof, windows, and doors—is the barrier between you and the weather. Getting it right is crucial for effective HVAC system design.

Two key boundaries must align: the thermal boundary (insulation) and the pressure boundary (air sealing). When continuous, they reduce the load on your HVAC system.

R-value tells you how well your insulation resists heat flow—higher R-values mean better performance, lower energy bills, and more consistent comfort. But even the best insulation can't do its job if air is leaking around it.

Modern homes are built much tighter, which is great for energy efficiency. However, when a home is very air-tight (less than 5 Air Changes per Hour at 50 Pascals), codes require mechanical ventilation for proper Indoor Air Quality (IAQ). Fresh air is essential for your family's health and comfort.

Moisture control is one of the most important jobs your HVAC system performs. When your air conditioner runs, it pulls moisture out of the air as warm, humid air passes over the cold indoor coil, causing water vapor to condense and drain away.

This is where proper HVAC system design is critical. An oversized AC cools quickly but fails to dehumidify, leaving rooms feeling clammy. This excess moisture can lead to mold and other IAQ problems, affecting your health and your home's structure.

Key Steps in HVAC System Design Load Calculation

Skipping proper load calculations is like guessing a clothing size for a stranger—it's bound to be wrong. Contractors who guess are gambling with your home's heating and cooling needs.

ACCA Manual J is the gold standard for residential load calculations. It's precise engineering that considers every factor affecting your home's comfort.

We start with local climate data and design temperatures. But factors like building orientation are also critical—a home with large south-facing windows has vastly different cooling needs than a north-facing one.

The characteristics of your building envelope play a huge role. The R-value of your insulation, window type, and how airtight your home is all factor into the calculations. Even internal heat gains from people, lights, and appliances contribute to your cooling load.

Understanding the difference between sensible heat (air temperature) and latent heat (moisture in the air) is crucial for proper system sizing, as your AC system must handle both effectively.

For larger commercial projects, we use sophisticated software for hour-by-hour energy modeling. But whether residential or commercial, the goal is the same: finding the perfect "Goldilocks" fit for your space.

When load calculations are wrong, an oversized system cycles too frequently, leading to poor comfort and high energy bills. An undersized system runs constantly but never keeps up. If you're dealing with inconsistent temperatures, our guide on how to solve HVAC hot and cold spots might help.

The Role of Building Codes and Standards

Building codes aren't red tape; they protect you from poor workmanship and unsafe installations. They ensure every HVAC system meets rigorous safety, efficiency, and performance requirements.

ASHRAE sets the global standard for HVAC excellence, influencing everything from load calculations to energy efficiency.

ACCA Manuals provide the step-by-step methodology we use daily. Manual J guides load calculations, Manual S covers equipment selection, and Manual D ensures proper ductwork design. These are often required by local building codes.

Here in British Columbia, we work within specific BC building codes that govern ventilation requirements and energy standards. These codes specify when mechanical ventilation is required and set minimum performance standards for equipment.

Permit applications ensure that qualified professionals review designs before installation and verify that completed work meets code. This protects you from costly mistakes and ensures your system performs as designed.

With over 30 years of experience, we know that adherence to these codes and standards prevents the common pitfalls of poorly designed systems. When your HVAC system design follows these guidelines, you get the comfort, efficiency, and reliability you deserve.

The Blueprint: System Selection and Ductwork

Once we've calculated your building's exact heating and cooling needs, it's time to choose the perfect equipment and map out how we'll deliver comfortable air to every corner of your space.

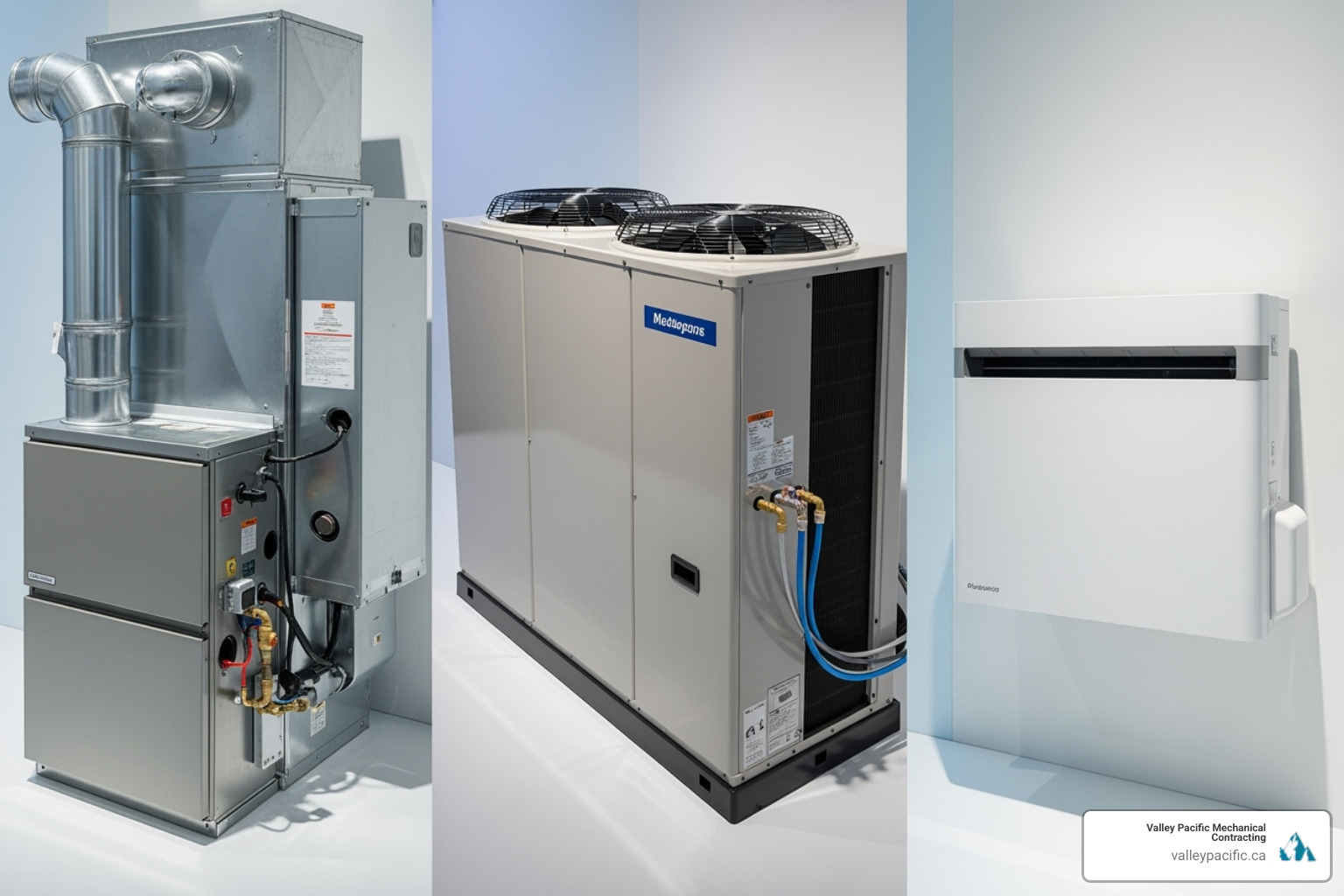

Different HVAC units like a furnace, a heat pump, and a ductless mini-split - HVAC system design

System sizing and equipment selection aren't guesswork; we follow ACCA Manual S. This standard ensures we select equipment that meets both sensible (temperature) and latent (humidity) heat loads without being oversized.

Here's the sweet spot: your chosen unit should never be more than 115% of the calculated size. An oversized system cycles on and off too frequently, leading to poor humidity control, wasted energy, and inconsistent comfort.

We also pay close attention to efficiency ratings. SEER (Seasonal Energy Efficiency Ratio) measures cooling efficiency, while HSPF (Heating Seasonal Performance Factor) does the same for heat pumps. Higher numbers mean lower energy bills.

Common Types of HVAC Systems

The world of HVAC offers something for every situation. Choosing the right system needs to fit your space, lifestyle, and budget.

System Type	Key Features
Forced-Air Systems	The workhorses of HVAC, combining a central furnace and AC. They use ductwork for air distribution and easily incorporate filtration and humidity control.
Heat Pumps	Efficiency champions that move heat rather than creating it. They heat in winter by extracting it from outside air and cool in summer by reversing the process. Ideal for the Lower Mainland climate. We offer expert heat pump installation services in Maple Ridge, BC.
Ductless Mini-Splits	Flexible solutions for homes without ductwork or for creating independent comfort zones. Each indoor unit is controlled separately, perfect for additions or converted spaces.
Geothermal Systems	A long-term investment that uses the earth's stable temperature for heat exchange via buried loops. Higher upfront cost but delivers incredible efficiency and longevity.
Variable Refrigerant Flow (VRF)	Advanced heat pump technology allowing simultaneous heating and cooling in different zones. Incredibly versatile, but typically for larger residential or commercial buildings.

Furnaces and air conditioners remain the backbone of many forced-air systems, running on natural gas, electricity, or oil. The key is matching the system type to your specific needs.

Designing Ductwork for Optimal Airflow

Ductwork is your home's circulatory system, delivering conditioned air to each room at the right pressure.

We use ACCA Manual D for precise ductwork engineering, eliminating guesswork by considering every bend, branch, and connection.

Duct layout is our first consideration. We map the most efficient path for your ducts, avoiding unnecessary turns and restrictions that choke airflow.

CFM calculations determine how much air each room needs. We typically work with about 400 CFM per ton of cooling capacity for the whole system, then break that down room by room based on individual loads.

Duct sizing is where the magic happens. Too small, and your system works harder, driving up costs and creating noise. Too large, and you waste money on materials. We aim for the Goldilocks zone—just right.

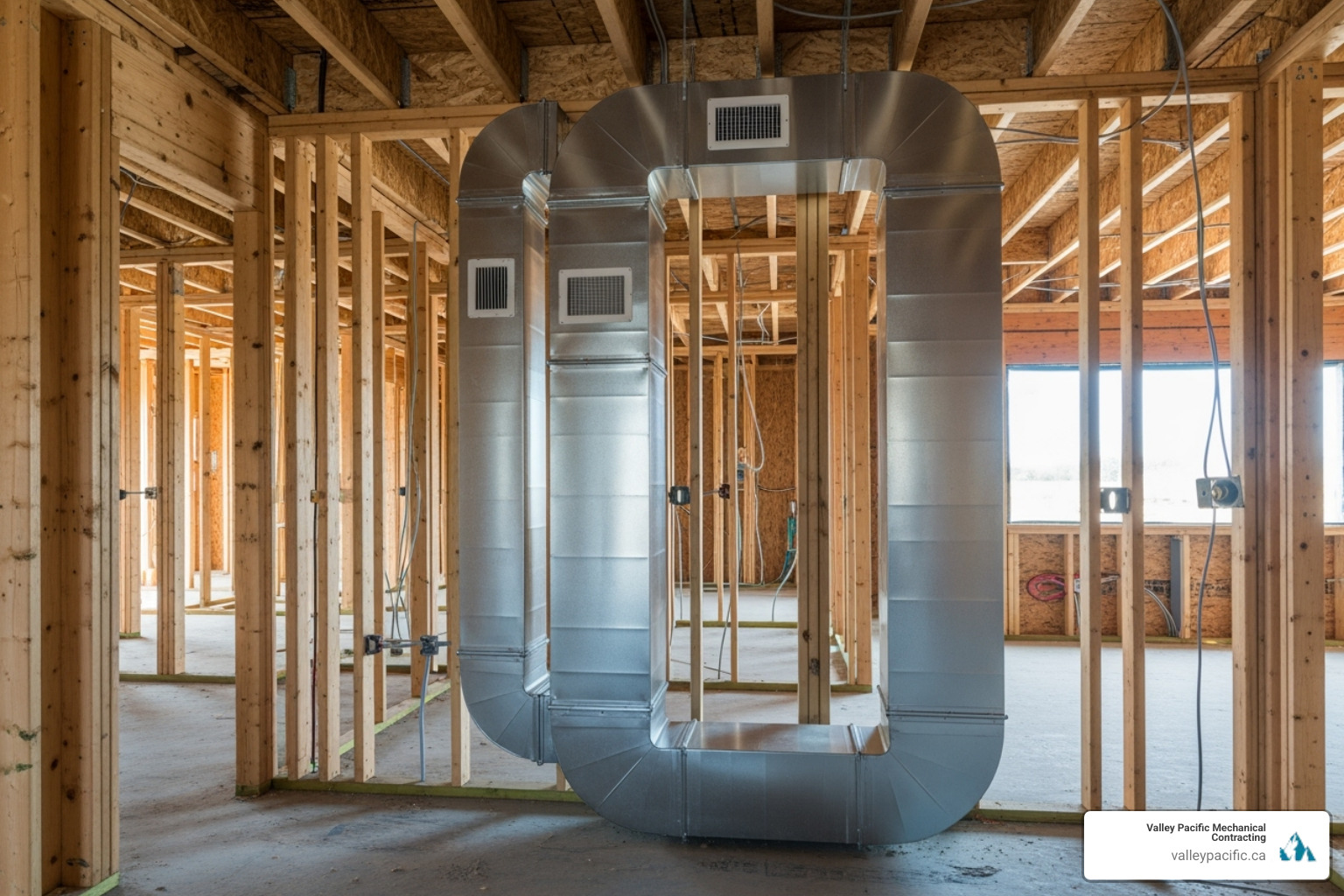

A well-designed ductwork system in a new construction home - HVAC system design

Duct sealing is a critical step. Leaky ducts can waste over 20% of your conditioned air. We use high-quality mastic sealant on every joint to prevent this loss.

We prefer round ducts when possible as they move air more efficiently. For rectangular ducts, we keep the aspect ratio close to square. Galvanized steel is our go-to material for its durability.

Every detail matters in our HVAC system design process, from installing volume control dampers to carefully calculating static pressure losses. The result is even temperatures, quiet operation, and reasonable energy bills.

Bringing it to Life: Integration, Controls, and Efficiency

Proper HVAC system design goes beyond equipment and ducts. The final phase involves seamless integration with your building for years of efficient, comfortable operation.

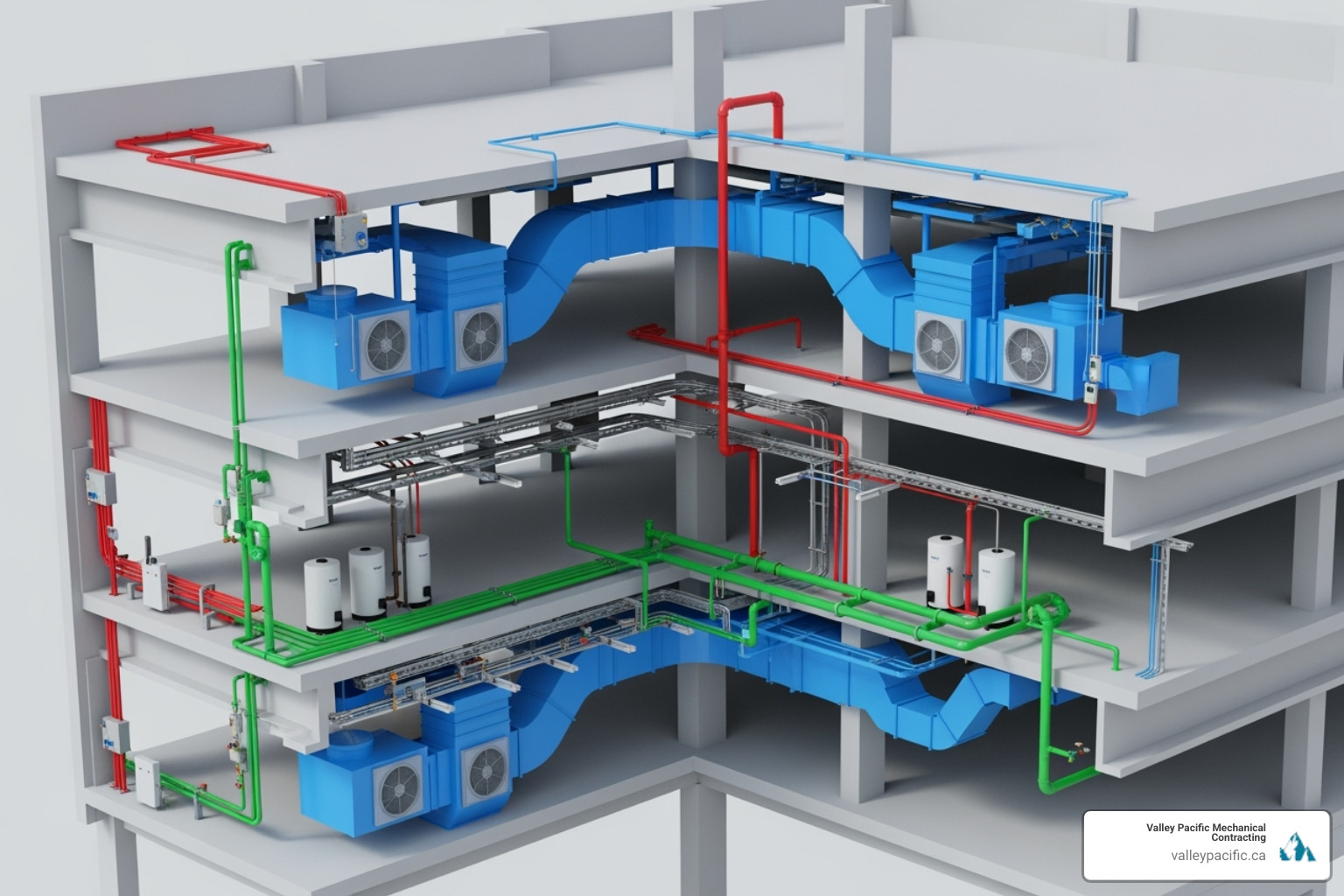

A BIM model showing MEP coordination with highlighted HVAC components - HVAC system design

Without proper system coordination, ducts can run into structural beams or ventilation systems might not meet code. Our 30+ years of experience show that early coordination saves clients money and headaches. Catching conflicts in the design phase is far cheaper than fixing them during construction.

Energy efficiency isn't just about high-SEER equipment. It's about a system that works intelligently with your building and lifestyle. We always consider lifecycle costs—not just the upfront price, but what the system will cost in energy, maintenance, and repairs over its lifespan.

Controls, Zoning, and Smart Technology

Modern control systems transform your HVAC from a simple appliance into an intelligent comfort management system.

Thermostats have evolved. Today's smart thermostats learn your schedule, adjust automatically when you're away, and can be controlled remotely.

Zoning systems are game-changers for homes with varied comfort needs. They allow independent temperature control in different areas, so you don't have to heat or cool the entire house to make one room comfortable.

This works through damper actuators—motorized controls that direct conditioned air where it's needed.

For commercial properties, Building Automation Systems (BAS) manage complex schedules, monitor performance, and even predict maintenance needs.

Safety controls are the unsung heroes. Smoke, fire, and carbon monoxide detectors can automatically shut down or redirect your ventilation system to protect occupants during emergencies.

We believe in smart technology because it makes your life easier while saving you money. Our clients love learning about the smart thermostat benefits available in the Lower Mainland.

Integrating with Other Building Systems and New Technologies

The best HVAC system design works in concert with all other building systems.

Building Information Modeling (BIM) revolutionizes system integration. We create detailed 3D models to see how HVAC interacts with structure, electrical, and plumbing, avoiding conflicts before they happen.

Clash detection is a BIM tool that lets us virtually "walk through" your building to spot conflicts between systems, fixing them in the model, not on the construction site.

MEP (mechanical, electrical, plumbing) coordination is critical. HVAC equipment needs dedicated circuits, wiring, and plumbing connections, and all components must be accessible for maintenance.

We also respect architectural constraints, designing systems that work within your aesthetic vision.

Renewable energy integration is becoming more popular. Geothermal systems use the earth's stable temperature for incredibly efficient heating and cooling. While the upfront investment is higher, the long-term energy savings can be substantial.

Solar-assisted HVAC systems use solar energy to power components, reducing your reliance on the grid. These systems require careful planning but represent the future of sustainable design.

At Valley Pacific Mechanical Contracting, we stay current with these emerging technologies. Our HVAC system design approach ensures everything works together seamlessly, giving you the headache-free experience we're known for.

Common Pitfalls and Professional Solutions

After 30 years in the business, we've seen the costly and frustrating consequences of poor HVAC system design. It can turn a dream home or office into a source of constant problems.

The most obvious issue is poor comfort—one room is sweltering while another is an icebox. You're constantly adjusting the thermostat, but nothing helps.

Then there are the high energy bills. When your HVAC system fights poor design, it works overtime, wasting the energy you pay for.

Premature equipment failure is another painful reality. We've seen expensive systems fail years early because they were stressed by improper sizing or installation. Our guide on signs your HVAC system may fail can help you spot trouble early.

Poor indoor air quality is a serious consequence. Inadequate ventilation or moisture control can compromise your family's health, leading to stuffy air, odors, or mold growth.

Finally, there are durability concerns. Persistent humidity can lead to structural damage that costs thousands to repair.

The Consequences of Improper HVAC System Design

Let's dig into how flawed HVAC system design shows up in real life.

Oversized systems are a common mistake. Bigger isn't better in HVAC. A large AC cools too quickly and shuts off before removing humidity. This short-cycling leaves you feeling clammy and uncomfortable, even if the thermostat reading is low.

On the flip side, undersized systems run constantly, trying to keep up but never quite getting there. On peak days, your space will never reach a comfortable temperature.

Hot and cold spots are the telltale sign of poor air distribution. These temperature variations usually point to ductwork that wasn't properly sized or positioned. We've written extensively about how we solve HVAC hot and cold spots for our clients.

Noise issues can seriously impact your quality of life. When ducts are too small or fans are improperly selected, your system can produce whistling, rumbling, or annoying cycling noises.

These aren't minor inconveniences; they are symptoms of fundamental design flaws that will continue to cost you money and comfort.

Why Professional Design is Non-Negotiable

Modern HVAC system design is too complex to leave to chance. Our 30+ year reputation is built on understanding that every detail matters.

Our expertise goes beyond just knowing which equipment to install. We understand building science, thermal dynamics, and how different systems interact. This experience helps us anticipate problems before they become expensive headaches.

Code compliance isn't just about passing inspections—it's about safety and performance. We steer the web of ASHRAE standards, ACCA manuals, and BC building codes daily, ensuring your system meets or exceeds every standard.

When we design a system, we stand behind its performance. You can trust that your HVAC system will deliver consistent comfort, maintain proper humidity, and operate efficiently.

The long-term savings from professional design are substantial. An initial investment pays for itself through lower energy bills, fewer repairs, and longer equipment life. It's about buying quality once instead of paying for problems repeatedly.

Most importantly, we deliver a headache-free experience. We handle the complex coordination, manage permitting, and ensure everything works together seamlessly. You shouldn't have to be an HVAC expert to get a comfortable home or office.

Whether you need HVAC services in Maple Ridge or HVAC services in Langley, our comprehensive approach to HVAC system design ensures you get the comfort, efficiency, and peace of mind you deserve.

Conclusion

We've covered HVAC system design, from load calculations and building envelopes to ductwork, controls, and renewable energy. It's clear that creating the perfect indoor climate is both an art and a science.

Remember: great HVAC system design isn't just assembling parts. It's creating a harmonized system where every component—furnace, ducts, controls, insulation—works together perfectly for a successful result.

The holistic approach makes all the difference. When we properly use standards like ACCA Manual J, S, and D, we're setting the stage for decades of comfort. Combined with smart controls, proper system integration, and adherence to ASHRAE standards and BC building codes, you have a recipe for success.

The long-term benefits are substantial: consistent temperatures, lower energy bills, cleaner air, and longer equipment life. You'll gain peace of mind knowing your system was designed by professionals who understand the Lower Mainland climate.

At Valley Pacific Mechanical Contracting, we've been perfecting this craft for over 30 years in Mission, Maple Ridge, Langley, and throughout the Lower Mainland. We've seen what happens when corners are cut and know the satisfaction of doing things right the first time. Our commitment to a headache-free experience means you can trust us to handle every detail.

Your comfort is too important to leave to chance. Whether you're building new, renovating, or tired of an underperforming system, professional HVAC system design is your foundation for reliable comfort. For expert heat pump installation in Langley, BC, or any other HVAC service, contact our team today. Let's create something great together.
